SLAC RECTILINEAR 5.0 IGBT -- WAVEFORMS AND VOLTAGE TEST DATA

G.E. LEYH

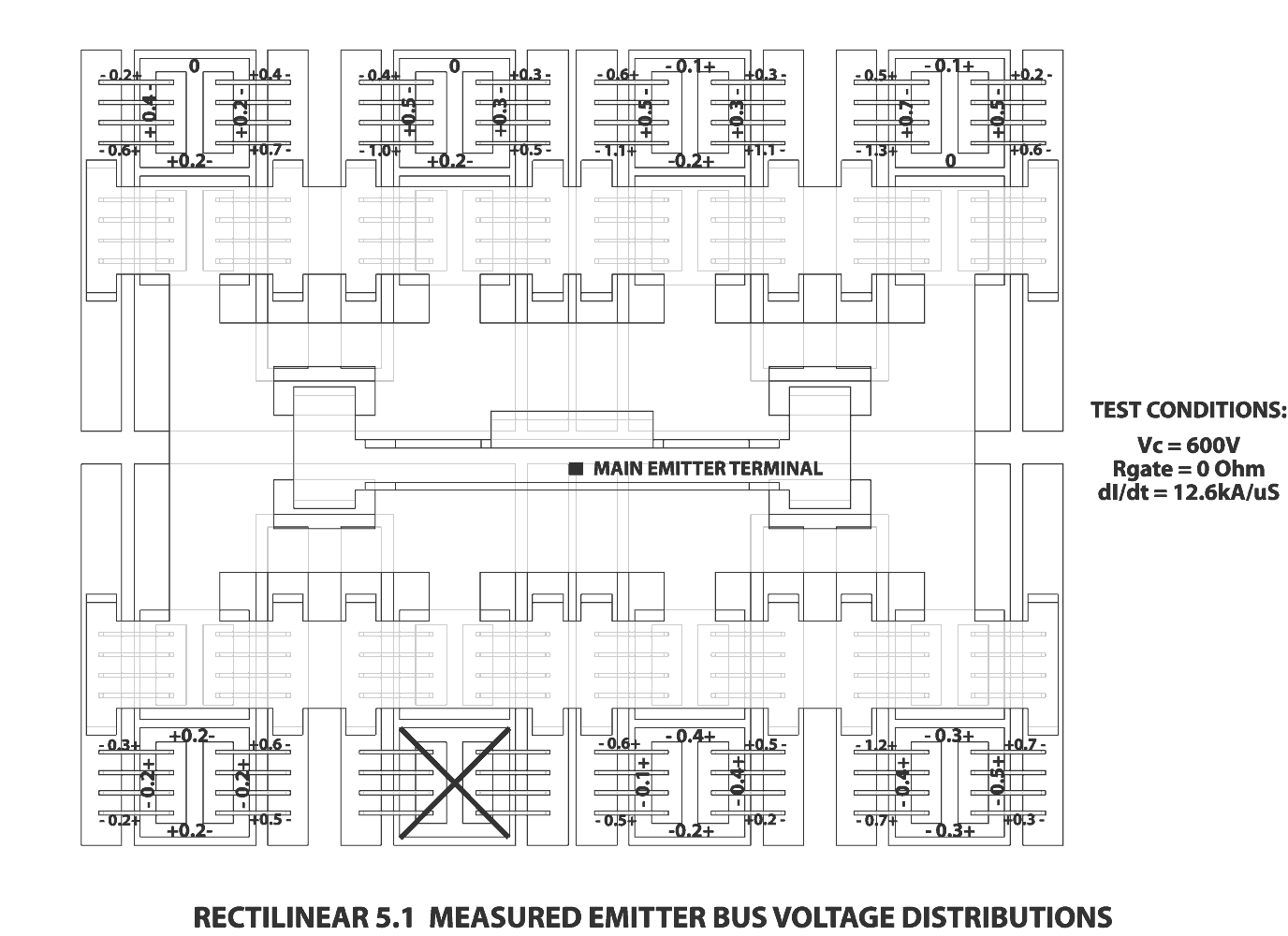

MEASUREMENT MAP OF ACTUAL VOLTAGE DROPS UNDER HIGH DI/DT CONDITIONS

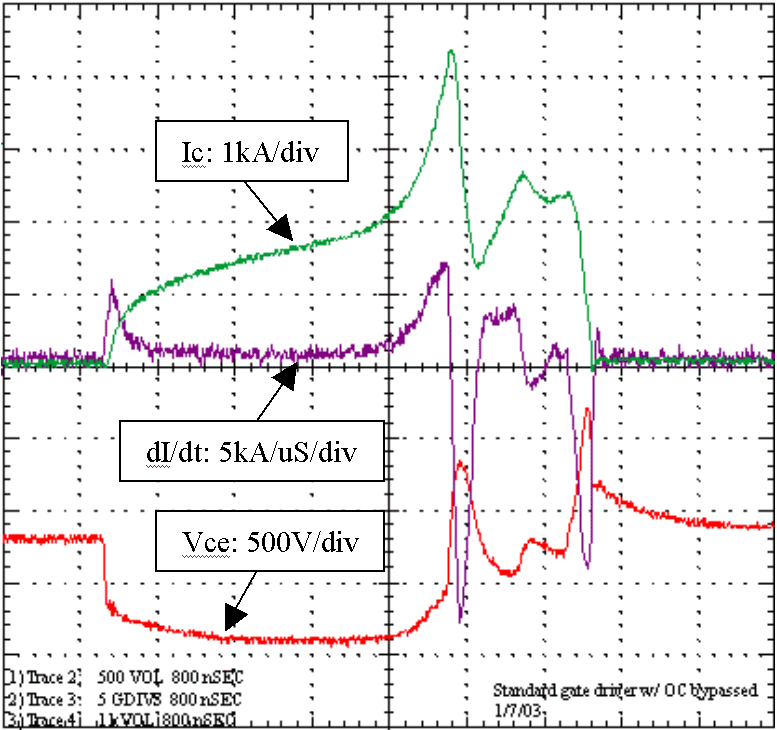

MFR 'A' TEST WAVEFORMS

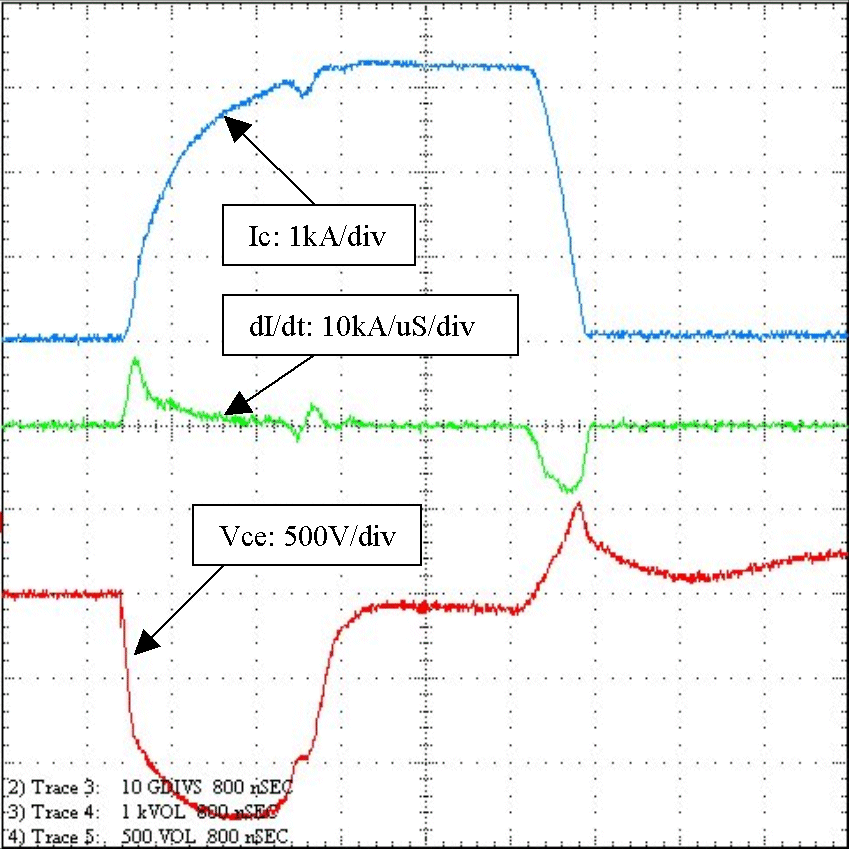

SLAC 5.2 IGBT AT 1750A

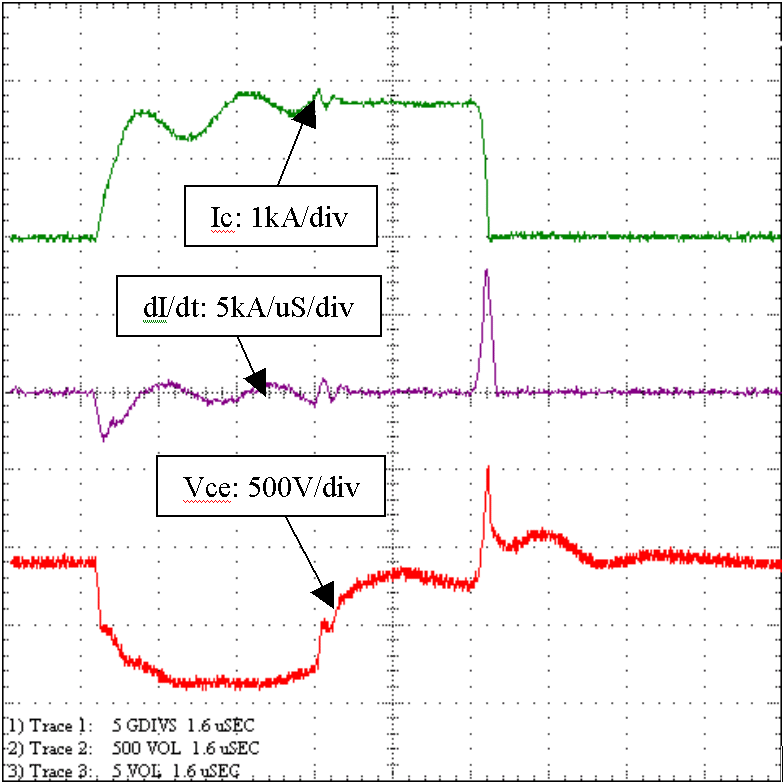

SLAC 5.2 IGBT AT 3200A
