Quadrupole Magnet Checks			60Q-098
	Date:	Magnet:	Operator(s):
	2/13/2002	60Q-098	Michael Rogers
	Notes:

Magnetic Fiducial Coordinates: (inches)
	Fiducial	Z	X	Y
	TB1	-11.3161	11.1561	16.1954
	TB2	11.3230	11.2092	16.2065
	TB3	-11.2719	-11.1751	16.2021	Offset:
	TB4	11.2573	-11.1060	16.2020	0.0000	inches
	TB5	-10.3347	-15.2014	-4.7141
	TB6	11.1914	-15.2038	-4.7113
	Description:
	Fiducial values based on the measured mechanical center line.

Quadrupole Mechanical Centerline Checks:

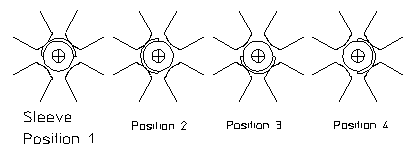

Mandrel Check (4 Positions):	X (in)	Y (in)
Position 1	0.0001	-0.0011
Position 2	-0.0004	-0.0002
Position 3	0.0010	0.0007
Position 4	0.0018	0.0001

Mandrel Check (Position 1):	X (in)	Y (in)
Position 1 (1^st check)	0.0004	-0.0010
Position 1 (2^nd check)	0.0013	-0.0020
Position 1 (3^rd check)	0.0013	-0.0021
Position 1 (4^th check if necc)	NA	NA
Position 1 (5^th check if necc)	NA	NA

Quadrupole Gap Measurement Checks

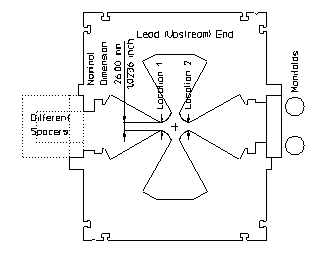

Gap Measurements:
Upstream (in)	Downstream (in)
Loc 1: 1.023	Loc 1: 1.024
Loc 2: 1.023	Loc 2: 1.023

Approval __________________

Quadrupole Magnet Fiducialization Traveller

Approval must be obtained before removing the magnet from the test stand.

Magnetic Measurements Approval by – Jack Tanabe or Tony King.

Magnet Serial Number 60Q-098

IHEP Magnetic Measurements Operator: ____________ Date:_____________

Measured Magnetic Center Offset Dx =__________ mm Dy =___________ mm

Measured at: Integrated Field: ____________ T-m @ Current_____________ Amps

SLAC Magnetic Measurements Operator: ____________ Date:_____________

Measured Magnetic Center Offset Dx =__________ mm Dy =___________ mm

Measured at: Integrated Field: ____________ T-m @ Current_____________ Amps

Fiducialization:

Date: 2/13/2002 Ambient Temperature ______________ deg. C.

Operator(s) Michael Rogers

Comment

Fiducial – Measured Coordinates	z	x	y
	(in)	(in)	(in)
TB1	-11.3161	11.1561	16.1954
TB2	11.3230	11.2092	16.2065
TB3	-11.2719	-11.1751	16.2021
TB4	11.2573	-11.1060	16.2020
TB5	-10.3347	-15.2014	-4.7141
TB6	11.1914	-15.2038	-4.7113

(For x, y corrected coordinates, use SLAC data if available. If not, use IHEP data.)

Fiducial – Corrected Coordinates	z	x	y
	(in)	(in)	(in)
TB1
TB2
TB3
TB4
TB5
TB6

Check Measurements:

Rod	xmeasured	xnominal	ymeasured	ynominal
R1	10.5042	10.5 in	14.8032	14.8 in
R2	10.4997	10.5 in	14.8100	14.8 in
R3	-10.4966	-10.5 in	14.8107	14.8 in
R4	-10.4995	-10.5 in	14.8087	14.8 in

Cylinder at Different Positions

Position 1 (x,y)=(0,0)	x (in)	y (in)
Position 2	-0.0005	0.0009
Position 3	0.0009	0.0018
Position 4	0.0017	0.0013

Approval __________________
