Quadrupole Magnet Checks			50Q-085
	Date:	Magnet:	Operator(s):
	11/13/2001	50Q-085	Michael Rogers
	Notes:
	Redid Tip # 5.

Magnetic Fiducial Coordinates: (inches)
	Fiducial	Z	X	Y
	TB1	-9.4404	11.2467	16.2004
	TB2	9.4287	11.2361	16.2042
	TB3	-9.4620	-11.2243	16.2059	Offset:
	TB4	9.4734	-11.2372	16.2018	0.0000	inches
	TB5	-8.3682	-15.2027	-4.7334
	TB6	9.3230	-15.2027	-4.7646
	Description:
	Fiducial values based on the measured mechanical center line.

Quadrupole Mechanical Centerline Checks:

Mandrel Check (4 Positions):	X (in)	Y (in)
Position 1	0.0001	-0.0003
Position 2	-0.0016	0.0021
Position 3	-0.0007	0.0030
Position 4	0.0007	0.0009

Mandrel Check (Position 1):	X (in)	Y (in)
Position 1 (1^st check)	-0.0008	0.0003
Position 1 (2^nd check)	-0.0011	0.0003
Position 1 (3^rd check)	-0.0010	-0.0001
Position 1 (4^th check if necc)	NA	NA
Position 1 (5^th check if necc)	NA	NA

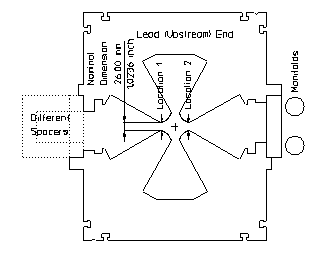

Quadrupole Gap Measurement Checks

Gap Measurements:
Upstream (in)	Downstream (in)
Loc 1: 1.023	Loc 1: 1.021
Loc 2: 1.022	Loc 2: 1.021

Approval __________________

Quadrupole Magnet Fiducialization Traveller

Approval must be obtained before removing the magnet from the test stand.

Magnetic Measurements Approval by – Jack Tanabe or Tony King.

Magnet Serial Number 50Q-085

IHEP Magnetic Measurements Operator: ____________ Date:_____________

Measured Magnetic Center Offset Dx =__________ mm Dy =___________ mm

Measured at: Integrated Field: ____________ T-m @ Current_____________ Amps

SLAC Magnetic Measurements Operator: ____________ Date:_____________

Measured Magnetic Center Offset Dx =__________ mm Dy =___________ mm

Measured at: Integrated Field: ____________ T-m @ Current_____________ Amps

Fiducialization:

Date: 11/13/2001 Ambient Temperature ______________ deg. C.

Operator(s) Michael Rogers

Comment
Redid Tip # 5.

Fiducial – Measured Coordinates	z	x	y
	(in)	(in)	(in)
TB1	-9.4404	11.2467	16.2004
TB2	9.4287	11.2361	16.2042
TB3	-9.4620	-11.2243	16.2059
TB4	9.4734	-11.2372	16.2018
TB5	-8.3682	-15.2027	-4.7334
TB6	9.3230	-15.2027	-4.7646

(For x, y corrected coordinates, use SLAC data if available. If not, use IHEP data.)

Fiducial – Corrected Coordinates	z	x	y
	(in)	(in)	(in)
TB1
TB2
TB3
TB4
TB5
TB6

Check Measurements:

Rod	xmeasured	xnominal	ymeasured	ynominal
R1	10.5000	10.5 in	14.8089	14.8 in
R2	10.4954	10.5 in	14.8115	14.8 in
R3	-10.4957	-10.5 in	14.8130	14.8 in
R4	-10.4999	-10.5 in	14.8106	14.8 in

Cylinder at Different Positions

Position 1 (x,y)=(0,0)	x (in)	y (in)
Position 2	-0.0017	0.0024
Position 3	-0.0007	0.0033
Position 4	0.0006	0.0012

Approval __________________
