Quadrupole Magnet Checks			34Q-054
	Date:	Magnet:	Operator(s):
	2/21/2002	34Q-054	Michael Rogers
	Notes:

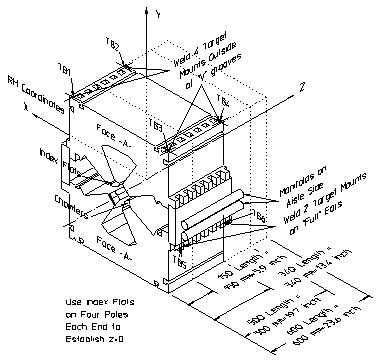

Magnetic Fiducial Coordinates: (inches)
	Fiducial	Z	X	Y
	TB1	-6.3068	11.2535	16.2012
	TB2	6.3202	11.2498	16.2015
	TB3	-6.3191	-11.2535	16.2030	Offset:
	TB4	6.3352	-11.2522	16.2008	0.0000	inches
	TB5	-5.2113	-15.1999	-4.7841
	TB6	4.6208	-15.2062	-4.7543
	Description:
	Fiducial values based on the measured mechanical center line.

Quadrupole Mechanical Centerline Checks:

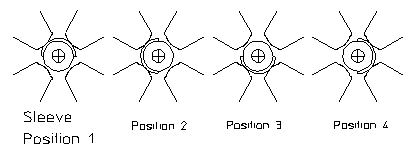

Mandrel Check (4 Positions):	X (in)	Y (in)
Position 1	0.0000	0.0000
Position 2	0.0001	0.0005
Position 3	0.0000	-0.0002
Position 4	0.0000	-0.0005

Mandrel Check (Position 1):	X (in)	Y (in)
Position 1 (1^st check)	0.0009	-0.0025
Position 1 (2^nd check)	0.0009	-0.0023
Position 1 (3^rd check)	0.0010	-0.0018
Position 1 (4^th check if necc)	NA	NA
Position 1 (5^th check if necc)	NA	NA

Quadrupole Gap Measurement Checks

Gap Measurements:
Upstream (in)	Downstream (in)
Loc 1: 1.023	Loc 1: 1.024
Loc 2: 1.023	Loc 2: 1.024

Approval __________________

Quadrupole Magnet Fiducialization Traveller

Approval must be obtained before removing the magnet from the test stand.

Magnetic Measurements Approval by – Jack Tanabe or Tony King.

Magnet Serial Number 34Q-054

IHEP Magnetic Measurements Operator: ____________ Date:_____________

Measured Magnetic Center Offset Dx =__________ mm Dy =___________ mm

Measured at: Integrated Field: ____________ T-m @ Current_____________ Amps

SLAC Magnetic Measurements Operator: ____________ Date:_____________

Measured Magnetic Center Offset Dx =__________ mm Dy =___________ mm

Measured at: Integrated Field: ____________ T-m @ Current_____________ Amps

Fiducialization:

Date: 2/21/2002 Ambient Temperature ______________ deg. C.

Operator(s) Michael Rogers

Comment

Fiducial – Measured Coordinates	z	x	y
	(in)	(in)	(in)
TB1	-6.3068	11.2535	16.2012
TB2	6.3202	11.2498	16.2015
TB3	-6.3191	-11.2535	16.2030
TB4	6.3352	-11.2522	16.2008
TB5	-5.2113	-15.1999	-4.7841
TB6	4.6208	-15.2062	-4.7543

(For x, y corrected coordinates, use SLAC data if available. If not, use IHEP data.)

Fiducial – Corrected Coordinates	z	x	y
	(in)	(in)	(in)
TB1
TB2
TB3
TB4
TB5
TB6

Check Measurements:

Rod	xmeasured	xnominal	ymeasured	ynominal
R1	10.4989	10.5 in	14.8079	14.8 in
R2	10.4941	10.5 in	14.8145	14.8 in
R3	-10.5010	-10.5 in	14.8067	14.8 in
R4	-10.5022	-10.5 in	14.8077	14.8 in

Cylinder at Different Positions

Position 1 (x,y)=(0,0)	x (in)	y (in)
Position 2	0.0000	0.0005
Position 3	0.0000	-0.0002
Position 4	-0.0001	-0.0006

Approval __________________
