Quadrupole Magnet Checks			34Q-032
	Date:	Magnet:	Operator(s):
	6/21/2001	34Q-032	Michael Rogers
	Notes:

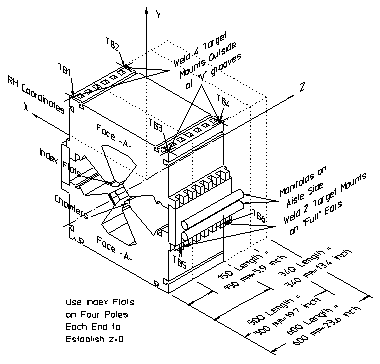

Magnetic Fiducial Coordinates: (inches)
	Fiducial	Z	X	Y
	TB1	-6.3068	11.2613	16.1898
	TB2	6.3357	11.2628	16.1929
	TB3	-6.3106	-11.2336	16.2169	Offset:
	TB4	6.3203	-11.2508	16.2159	0.0000	inches
	TB5	-5.2764	-15.2060	-4.8059
	TB6	4.6182	-15.2076	-4.7914
	Description:
	Fiducial values based on the measured mechanical center line.

Quadrupole Mechanical Centerline Checks:

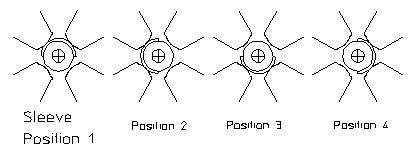

Mandrel Check (4 Positions):	X (in)	Y (in)
Position 1	-0.0001	0.0004
Position 2	0.0003	0.0007
Position 3	0.0010	0.0001
Position 4	0.0005	0.0004

Mandrel Check (Position 1):	X (in)	Y (in)
Position 1 (1^st check)	0.0005	-0.0004
Position 1 (2^nd check)	0.0001	-0.0002
Position 1 (3^rd check)	0.0002	-0.0007
Position 1 (4^th check if necc)	NA	NA
Position 1 (5^th check if necc)	NA	NA

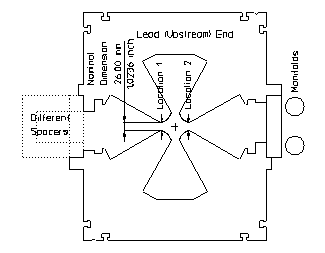

Quadrupole Gap Measurement Checks

Gap Measurements:
Upstream (in)	Downstream (in)
Loc 1: 1.023	Loc 1: 1.023
Loc 2: 1.023	Loc 2: 1.023

Approval __________________

Quadrupole Magnet Fiducialization Traveller

Approval must be obtained before removing the magnet from the test stand.

Magnetic Measurements Approval by – Jack Tanabe or Tony King.

Magnet Serial Number 34Q-032

IHEP Magnetic Measurements Operator: ____________ Date:_____________

Measured Magnetic Center Offset Dx =__________ mm Dy =___________ mm

Measured at: Integrated Field: ____________ T-m @ Current_____________ Amps

SLAC Magnetic Measurements Operator: ____________ Date:_____________

Measured Magnetic Center Offset Dx =__________ mm Dy =___________ mm

Measured at: Integrated Field: ____________ T-m @ Current_____________ Amps

Fiducialization:

Date: 6/21/2001 Ambient Temperature ______________ deg. C.

Operator(s) Michael Rogers

Comment

Fiducial – Measured Coordinates	z	x	y
	(in)	(in)	(in)
TB1	-6.3068	11.2613	16.1898
TB2	6.3357	11.2628	16.1929
TB3	-6.3106	-11.2336	16.2169
TB4	6.3203	-11.2508	16.2159
TB5	-5.2764	-15.2060	-4.8059
TB6	4.6182	-15.2076	-4.7914

(For x, y corrected coordinates, use SLAC data if available. If not, use IHEP data.)

Fiducial – Corrected Coordinates	z	x	y
	(in)	(in)	(in)
TB1
TB2
TB3
TB4
TB5
TB6

Check Measurements:

Rod	xmeasured	xnominal	ymeasured	ynominal
R1	10.5161	10.5 in	14.7975	14.8 in
R2	10.5162	10.5 in	14.7949	14.8 in
R3	-10.4842	-10.5 in	14.8184	14.8 in
R4	-10.4853	-10.5 in	14.8179	14.8 in

Cylinder at Different Positions

Position 1 (x,y)=(0,0)	x (in)	y (in)
Position 2	0.0005	0.0003
Position 3	0.0011	-0.0003
Position 4	0.0007	0.0000

Approval __________________
