Sextupole Magnet Checks



 25S-74





















































Date:



Magnet:







Operator(s):









 9/12/2001



 25S-74







 Michael Rogers































Notes:

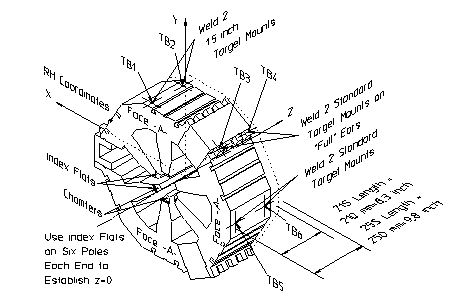

Magnetic Fiducial Coordinates: (inches)



























































Fiducial

Z

X

Y















TB1

-4.3122

 4.2185

 15.5078















TB2

 4.2667

 4.2016

 15.5112















TB3

-4.4222

-10.5043

 12.5323





Offset:









TB4

 3.4691

-10.5354

 12.5146





0.0000

 inches







TB5

-4.4976

-15.0604

 0.0796















TB6

 4.5391

-15.0626

 0.0576



























































Description:



















Fiducial values based on the measured mechanical center line.


























Sextupole Mechanical Centerline Checks:



Mandrel Check (4 Positions):

X (in)

Y (in)

Position 1

-0.0001

 0.0002

Position 2

-0.0002

 0.0005

Position 3

-0.0003

 0.0008

Position 4

 0.0028

-0.0047

Position 5

 0.0063

 0.0012

Position 6

-0.0010

 0.0013

Mandrel Check (Position 1):

X (in)

Y (in)

Position 1 (1st check)

 0.0038

-0.0013

Position 1 (2nd check)

 0.0032

 0.0006

Position 1 (3rd check)

 0.0028

-0.0001

Position 1 (4th check if necc)

NA

NA

Position 1 (5th check if necc)

NA

NA













Sextupole Gap Measurement Checks





Gap Measurements:



Upstream (in)

Downstream (in)

Loc 1: 1.069

Loc 1: 1.068

Loc 2: 1.069

Loc 2: 1.068

Loc 3: 1.074

Loc 3: 1.072

Approval ________________________






Sextupole Magnet Fiducialization Traveller

Approval must be obtained before removing the magnet from the test stand.

Magnetic Measurements Approval by – Jack Tanabe or Tony King.

Magnet Serial Number 25S-74

IHEP Magnetic Measurements Operator: ____________   Date:_____________

Measured Magnetic Center Offset  Dx =__________ mm  Dy =___________ mm

Measured at: Integrated Field:  ____________ T-m @ Current_____________ Amps

SLAC Magnetic Measurements Operator: ____________   Date:_____________

Measured Magnetic Center Offset  Dx =__________ mm  Dy =___________ mm

Measured at: Integrated Field:  ____________ T-m @ Current_____________ Amps

Fiducialization:

Date: 9/12/2001    Ambient Temperature ______________ deg. C.

Operator(s)  Michael Rogers

Comment


Fiducial – Measured

Coordinates

z

x

y

(in)

(in)

(in)

TB1

-4.3122

4.2185

15.5078

TB2

4.2667

4.2016

15.5112

TB3

-4.4222

-10.5043

12.5323

TB4

3.4691

-10.5354

12.5146

TB5

-4.4976

-15.0604

0.0796

TB6

4.5391

-15.0626

0.0576

(For x, y corrected coordinates, use SLAC data if available.  If not, use IHEP data.)

Fiducial – Corrected

Coordinates

z

x

y

(in)

(in)

(in)

TB1







TB2







TB3







TB4







TB5







TB6







Check Measurements:

Flat Center

xmeasured

xnominal

ymeasured

ynominal

Upstream



0.0 in



12.8 in

Downstream



0.0 in



12.8 in



Position 1 (x,y)=(0,0)

x (in)

y (in)

Position 2

-0.0001

 0.0003

Position 3

-0.0002

 0.0006

Position 4

 0.0029

-0.0049

Position 5

 0.0064

 0.0010

Position 6

-0.0010

 0.0011

Approval ________________________
