Quadrupole Magnet Checks			15Q-029
	Date:	Magnet:	Operator(s):
	9/6/2001	15Q-029	Michael Rogers
	Notes:

Magnetic Fiducial Coordinates: (inches)
	Fiducial	Z	X	Y
	TB1	-2.5785	11.2479	16.1948
	TB2	2.5731	11.2404	16.2001
	TB3	-2.5743	-11.2375	16.2003	Offset:
	TB4	2.5417	-11.2106	16.1946	0.0000	inches
	TB5	-1.4702	-15.1965	-4.7869
	TB6	2.4674	-15.1991	-4.8184
	Description:
	Fiducial values based on the measured mechanical center line.

Quadrupole Mechanical Centerline Checks:

Mandrel Check (4 Positions):	X (in)	Y (in)
Position 1	-0.0001	-0.0001
Position 2	0.0020	-0.0012
Position 3	0.0018	-0.0028
Position 4	-0.0008	-0.0017

Mandrel Check (Position 1):	X (in)	Y (in)
Position 1 (1^st check)	0.0004	-0.0016
Position 1 (2^nd check)	0.0008	-0.0015
Position 1 (3^rd check)	0.0005	-0.0014
Position 1 (4^th check if necc)	NA	NA
Position 1 (5^th check if necc)	NA	NA

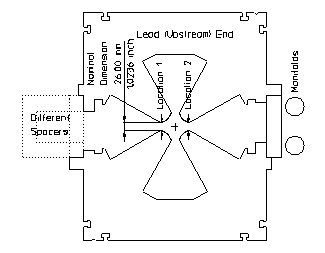

Quadrupole Gap Measurement Checks

Gap Measurements:
Upstream (in)	Downstream (in)
Loc 1: 1.023	Loc 1: 1.022
Loc 2: 1.023	Loc 2: 1.022

Approval __________________

Quadrupole Magnet Fiducialization Traveller

Approval must be obtained before removing the magnet from the test stand.

Magnetic Measurements Approval by – Jack Tanabe or Tony King.

Magnet Serial Number 15Q-029

IHEP Magnetic Measurements Operator: ____________ Date:_____________

Measured Magnetic Center Offset Dx =__________ mm Dy =___________ mm

Measured at: Integrated Field: ____________ T-m @ Current_____________ Amps

SLAC Magnetic Measurements Operator: ____________ Date:_____________

Measured Magnetic Center Offset Dx =__________ mm Dy =___________ mm

Measured at: Integrated Field: ____________ T-m @ Current_____________ Amps

Fiducialization:

Date: 9/6/2001 Ambient Temperature ______________ deg. C.

Operator(s) Michael Rogers

Comment

Fiducial – Measured Coordinates	z	x	y
	(in)	(in)	(in)
TB1	-2.5785	11.2479	16.1948
TB2	2.5731	11.2404	16.2001
TB3	-2.5743	-11.2375	16.2003
TB4	2.5417	-11.2106	16.1946
TB5	-1.4702	-15.1965	-4.7869
TB6	2.4674	-15.1991	-4.8184

(For x, y corrected coordinates, use SLAC data if available. If not, use IHEP data.)

Fiducial – Corrected Coordinates	z	x	y
	(in)	(in)	(in)
TB1
TB2
TB3
TB4
TB5
TB6

Check Measurements:

Rod	xmeasured	xnominal	ymeasured	ynominal
R1	10.5010	10.5 in	14.8037	14.8 in
R2	10.4988	10.5 in	14.8051	14.8 in
R3	-10.4953	-10.5 in	14.8074	14.8 in
R4	-10.5024	-10.5 in	14.8025	14.8 in

Cylinder at Different Positions

Position 1 (x,y)=(0,0)	x (in)	y (in)
Position 2	0.0021	-0.0010
Position 3	0.0020	-0.0026
Position 4	-0.0007	-0.0015

Approval __________________
