Quadrupole Magnet Checks



15Q-008





















































Date:



Magnet:







Operator(s):









 8/22/2001



 15Q-008







 Michael Rogers































Notes:





















 Redo. Redid Tip 3. 5 and 6 are new tooling balls.











































Magnetic Fiducial Coordinates: (inches)



























































Fiducial

Z

X

Y















TB1

-2.5660

 11.2537

 16.2066















TB2

 2.5755

 11.2580

 16.2069















TB3

-2.5841

-11.2527

 16.2051





Offset:









TB4

 2.5674

-11.2544

 16.2046





0.0000

 inches







TB5

-1.5218

-15.2060

-4.7523















TB6

 2.3569

-15.2039

-4.8310



























































Description:



















Fiducial values based on the measured mechanical center line.






































Quadrupole Mechanical Centerline Checks:



Mandrel Check (4 Positions):

X (in)

Y (in)

Position 1

 0.0000

 0.0006

Position 2

 0.0025

-0.0016

Position 3

 0.0017

-0.0036

Position 4

-0.0009

-0.0020

Mandrel Check (Position 1):

X (in)

Y (in)

Position 1 (1st check)

 0.0000

-0.0013

Position 1 (2nd check)

 0.0016

-0.0061

Position 1 (3rd check)

 0.0004

-0.0015

Position 1 (4th check if necc)

NA

NA

Position 1 (5th check if necc)

NA

NA

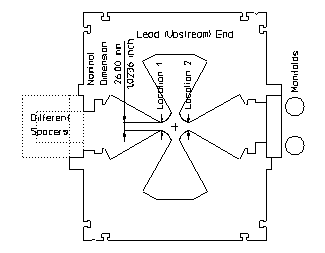

Quadrupole Gap Measurement Checks







Gap Measurements:



Upstream (in)

Downstream (in)

Loc 1: 1.023

Loc 1: 1.023

Loc 2: 1.024

Loc 2: 1.024



Approval __________________














Quadrupole Magnet Fiducialization Traveller

Approval must be obtained before removing the magnet from the test stand.

Magnetic Measurements Approval by – Jack Tanabe or Tony King.

Magnet Serial Number 15Q-008

IHEP Magnetic Measurements Operator: ____________   Date:_____________

Measured Magnetic Center Offset  Dx =__________ mm  Dy =___________ mm

Measured at:  Integrated Field:  ____________ T-m @ Current_____________ Amps

SLAC Magnetic Measurements Operator: ____________   Date:_____________

Measured Magnetic Center Offset  Dx =__________ mm  Dy =___________ mm

Measured at:  Integrated Field:  ____________ T-m @ Current_____________ Amps

Fiducialization:

Date: 8/22/2001    Ambient Temperature ______________ deg. C.

Operator(s)  Michael Rogers

Comment
Redo. Redid Tip 3. 5 and 6 are new tooling balls.



Fiducial – Measured

Coordinates

z

x

y

(in)

(in)

(in)

TB1

-2.5660

11.2537

16.2066

TB2

2.5755

11.2580

16.2069

TB3

-2.5841

-11.2527

16.2051

TB4

2.5674

-11.2544

16.2046

TB5

-1.5218

-15.2060

-4.7523

TB6

2.3569

-15.2039

-4.8310

 (For x, y corrected coordinates, use SLAC data if available.  If not, use IHEP data.)

Fiducial – Corrected

Coordinates

z

x

y

(in)

(in)

(in)

TB1







TB2







TB3







TB4







TB5







TB6







Check Measurements:

Rod

xmeasured

xnominal

ymeasured

ynominal

R1

 10.5006

10.5 in

 14.8051

14.8 in

R2

 10.5007

10.5 in

 14.8046

14.8 in

R3

-10.4998

-10.5 in

 14.8061

14.8 in

R4

-10.5016

-10.5 in

 14.8031

14.8 in

Cylinder at Different Positions

Position 1 (x,y)=(0,0)

x (in)

y (in)

Position 2

 0.0026

-0.0022

Position 3

 0.0017

-0.0042

Position 4

-0.0009

-0.0026

Approval __________________
